应用类型 GC & GC-MS

部件号: UK: 30-1610 (230v)
EU: 30-1620 (230v)
US: 30-1630 (110v)

状态 停产 i

内置空压机 No

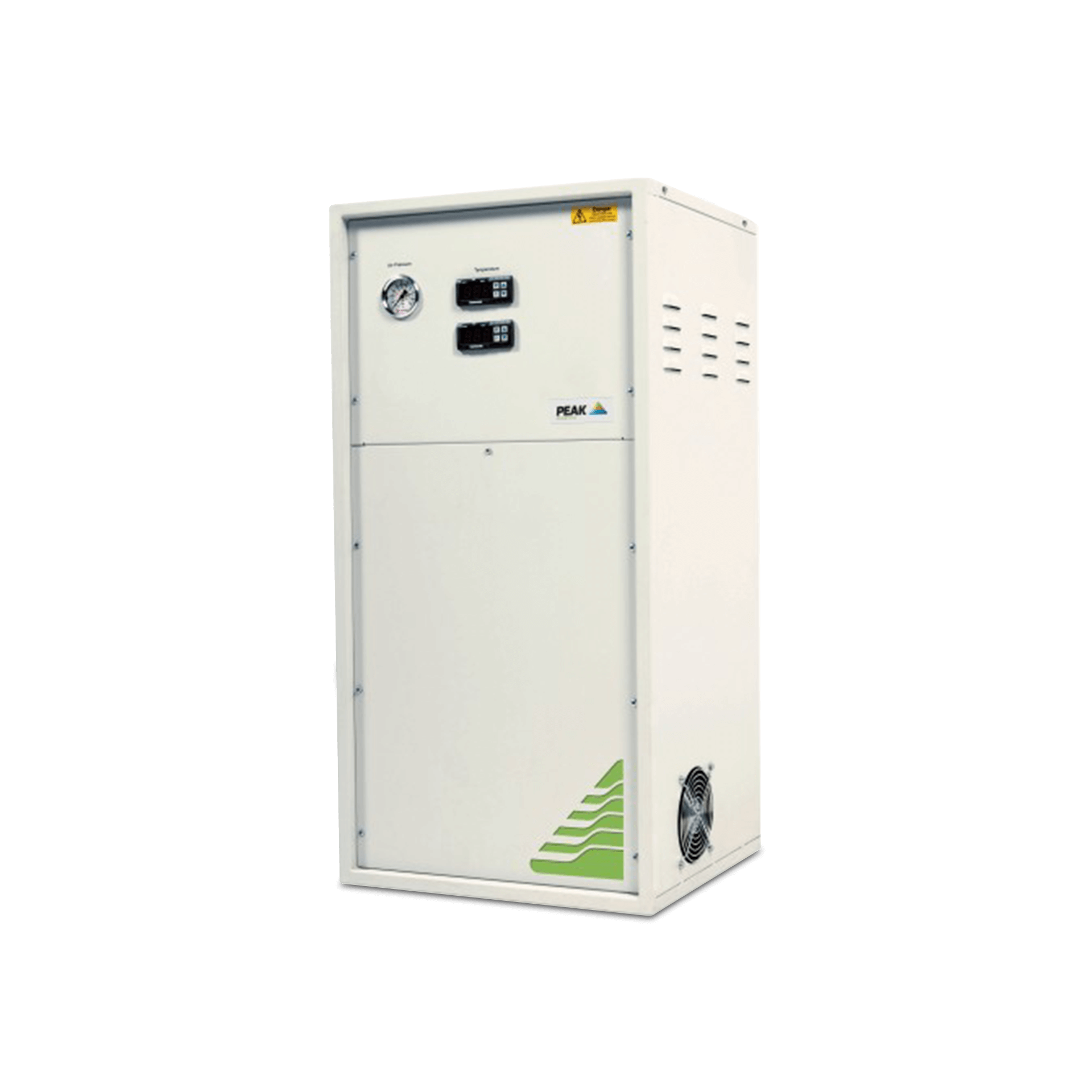

ZA070A 空气发生器

在GC应用中为检测器气体产生零空气,ZA070A发生器在进入仪器前从压缩空气源中去除所有碳氢化合物,确保从检测器得到最整洁的结果。

特征

  • Produces a constant flow of Zero Grade Air with a hydrocarbon content of less than 0.1ppm
  • Performs 24/7 if needed
  • One generator can supply multiple instruments
  • Few moving parts means little maintenance required and ensures long life of the generator
  • Minimal set-up required
  • 12 month comprehensive on-site warranty

气体

气体种类: 空气

最小气体流速: 0L/min

最大气体流速: 7L/min

碳氢化合物含量: 0.1ppm

最大纯度: 0.1ppm THC

场地及安装

启动时间: 40 Minutes

电压: 230 ± 10% VAC

频率: 50 HZ

电流: 4.9 Amps

最高工作温度: 30°C / 86°F

颗粒物: 0.01μm

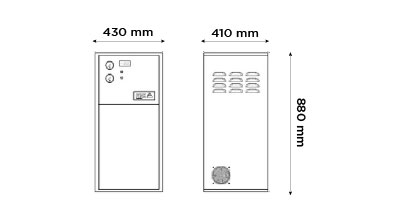

尺寸和重量

ZA180A 200 01

尺寸(高*宽*深)mm: 880 x 430 x 410 mm

尺寸(高*宽*深)英寸: 34.6 x 16.9 x 16.1 inches

发生器重量: 64kg / 140.8lbs
