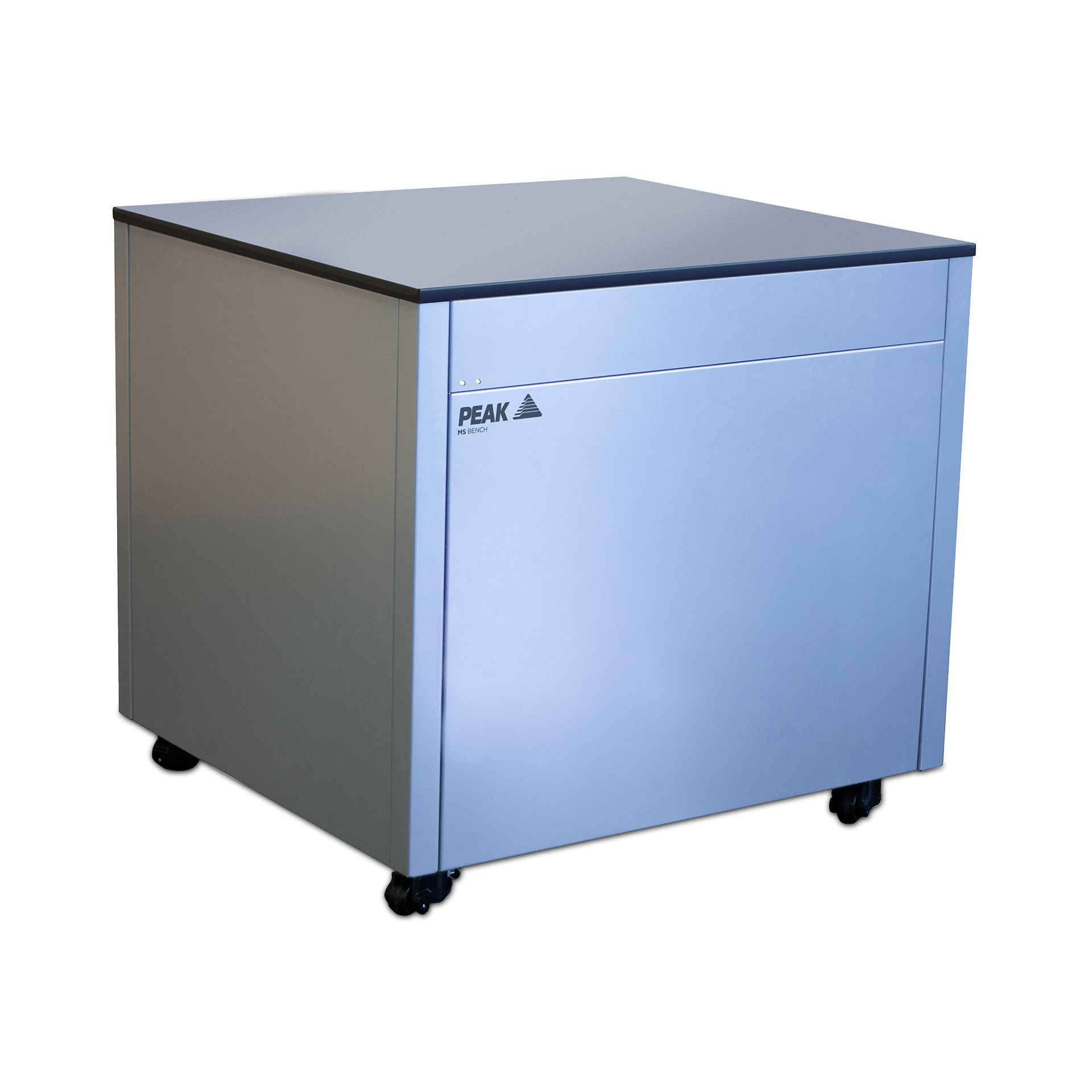

MS BENCH SCI-专用于Sceix质谱的实验桌系统
Peak MS Bench SCI产品系列专为SCIEX质谱研发，下方集成气体发生器或隔音真空泵，以提供模块化的产品。
应用: LC-MS
部件号:
10-1028
状态 停产 i
内置空压机 No

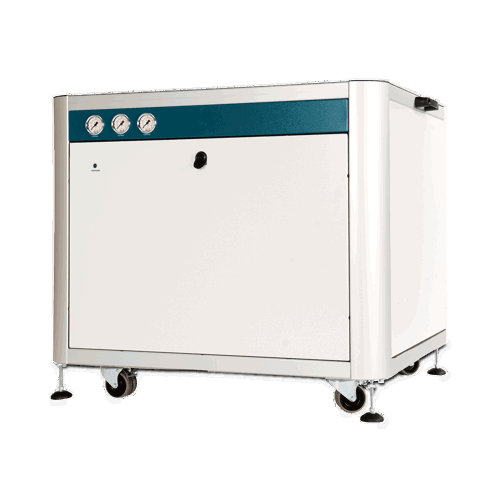

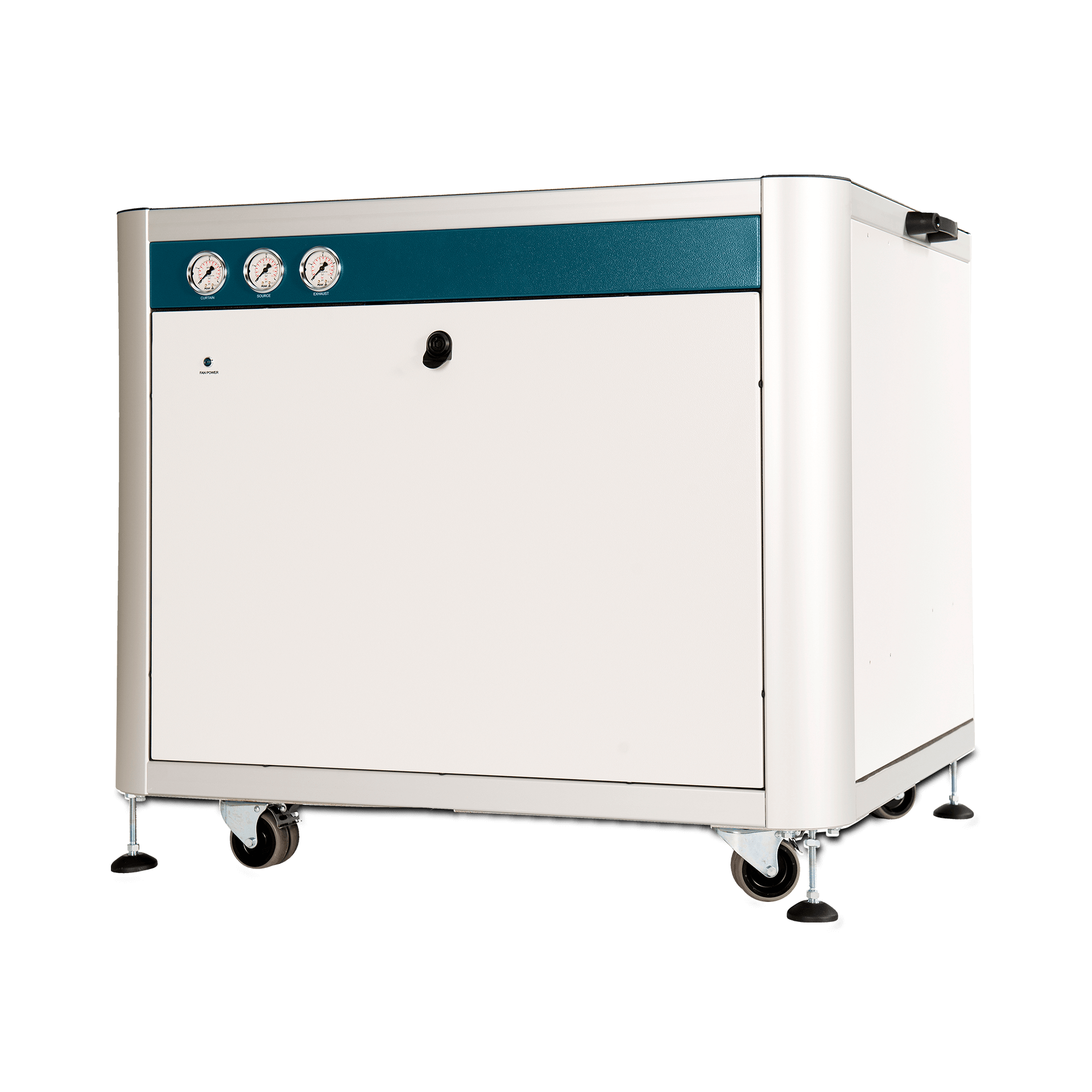

SCIEX MS Table 2N
The AB SCIEX table is designed specifically to locate the 4500 & 5500 family of products. The table is available in both standard form and also with an integral gas generator with the capacity to supply all of the instruments in the 4500 & 5500 family.
特征
- Sound proofed enclosure, significantly reduced noise level
- Mass Spec sits on top of the unit
- Plug & play system
- Easy access for pump service
气体
气体种类: 空气
最大气体流速: 12
场地及安装
气体出口装置: 3 x ¼” BSPP
最大进气压力: 8.3-10 bar (120-145 psi)
Min Air Inlet Flow: 115 L/min (4.06 cfm)
露点: 3°C / 37.4°F
启动时间: 30 minutes
耗电量: 240
电压: 110-240
频率: 50/60
电流: 1 Amp
最高工作温度: 30°C / 86°F
颗粒物: <0.01µm
证书: CE
尺寸和重量
尺寸（高*宽*深）mm: 804 x 1000 x 830 mm
尺寸（高*宽*深）英寸: 31.7 x 39.4 x 32.7 inches
发生器重量: 108kg / 237.6lbs
